automatic 4 heads piston jam filling machine

Home » Products » automatic 4 heads piston jam filling machine

automatic 4 heads piston jam filling machine

Automatic 4 Heads (Piston) Jam Filling Machine is suited for viscous products that are easy volatility liquid, easy concreting liquid, easy foaming liquid, suited for strong corrosive chemicals for rubber and plastic, suited for paste, semi paste. The max filling speed can reach 800 bottles/hour.

It widely apple to various chemical, Such as heavy sauce, salsas, salad dressing and waxes, adhesives, heavy oils and lubricants.
Automatic controlled by computer (PLC), touch screen control panels
Advance structure, high reliability, little noise, wide metering regulate range, high filling speed.
Use High-quality stainless steel of parts contacting materials, adhering to GMP standards.
The material tank of the machine is special for adds to churn-dasher, it can churn up and filling at the same step.

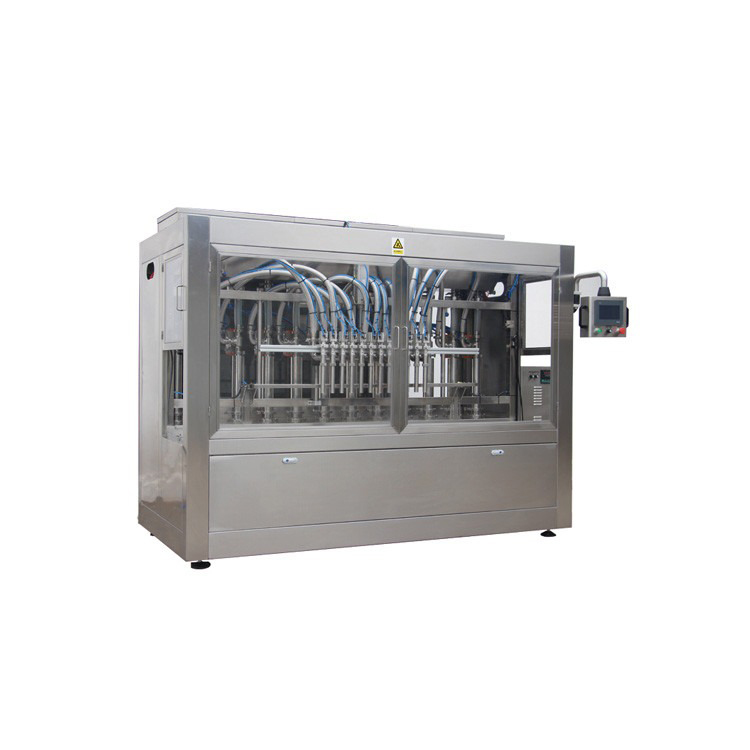

Automatic 4 Heads (Piston) Jam Filling Machine

Technical Parameter

Power supplyAC 220V; 50Hz
Power1Kw
Pneumatic (air-operated) sauce0.6 Mpa clean and stable compressed air
Min diameter of bottle mouth30mm
Suitable bottle size40mm”100mm
Suitable bottle height60mm”230mm
Suited filling materialno contain hard granule contained
Production capacity1000-1200 bottle/hour
Weight460Kg
Overall Dimension (L—W—H)2000mm—1100mm—1900mm
