The filling pump synchronized with conveyor drive and conveyor drive controlled by AC frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hollow shaft, geared motor controlled by AC frequency drive. A knob can set the speed of conveyor. Npack has Installed various Viscous Liquid Filling Machines like Shampoo Filling Machine, Lotions Fillers, Creams Filling line, Paste Filling Machine, Cosmetics Filling Machine, Aloe Vera Cosmetics Filling Machine, Herbal Cosmetics Filling Machine, Marmalades Filling Machine, Chocolate/Candy Filling Machine, Oats Filling Machine, Ghee Filling Machine, Jam Filling Machine, Cheese Spread Filling Machine etc.

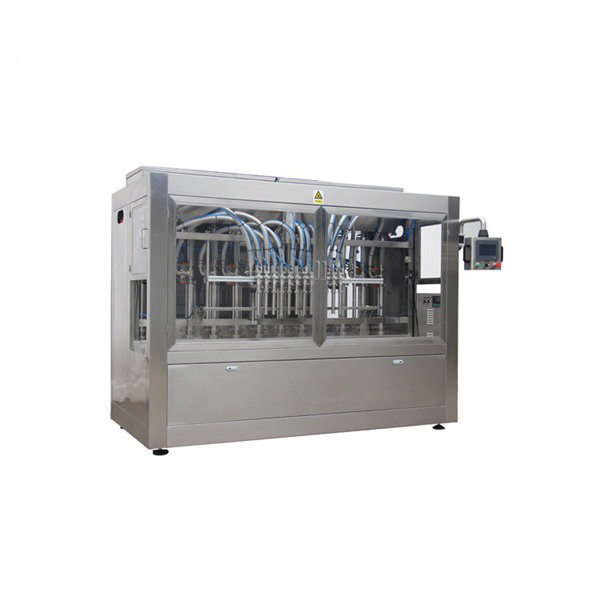

- Automatic Viscous Ghee Filling Machine :
SERVO + PLC based automatic Viscous Ghee Filling machine online automatically with : - Servo Base Piston operating
Volume Adjustable from PLC – NO Tools required
Multi Dose filling arrangement – on request
Multi head dozers
Diving nozzles.
Shut off type nozzle for anti-drip.
SS conveyor with ‘stop-release line automation’,
‘no-bottle-no- fill ‘controls,
CIP mode for rinsing of product cylinders, valves and nozzles.
Ideally suited to fill viscous products like Ghee & lotions.
Adjustable guide rails on conveyor to accommodate different diameters of bottles/cans.
SS hopper.
Pneumatic cylinders for Bottle Stopper.
Adjustable diving depth depending on size of bottles/cans.
PLC + Touch Screen controlled panel for electrical controls.
Production counter on PLC.
PLC settings for varied volumes.
Volume adjustment facility for different pack volumes.
Height adjustment facility for different bottle sizes.
Optical/Proximity sensors to sense arrival of bottles to filling station.
Stoppers to accurately stop bottles/cans under the filling nozzle.
Accuracy ±0.1% to 0.2%
All contact parts SS316 and non contact parts SS304
