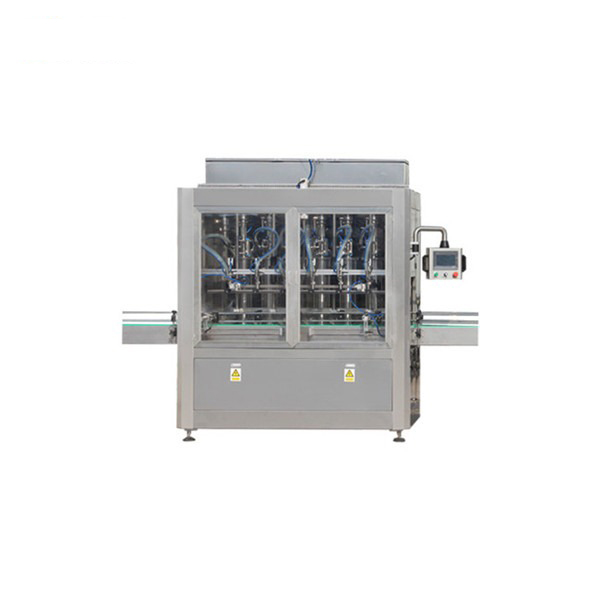

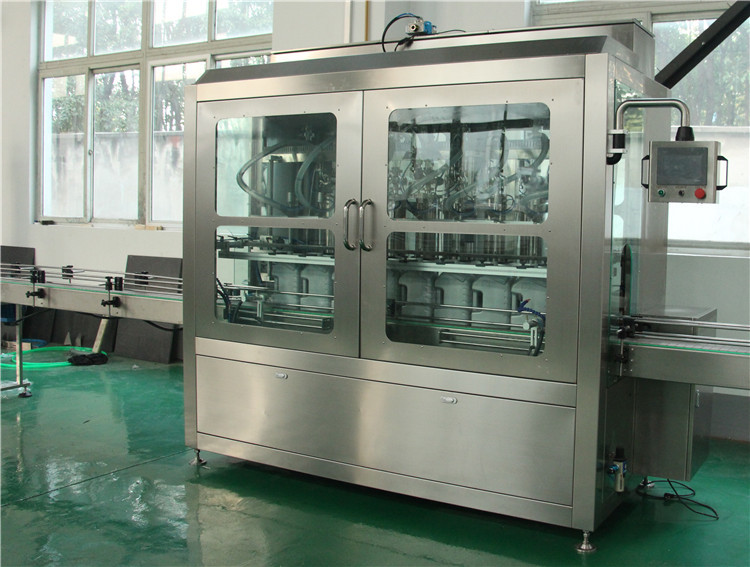

Thick liquid filler machine is a high-tech product designed and developed by Npack Machinery. Npack Machinery is manufacturer and suppliers in China. Thick liquid filler machine suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry. Using the straight filling way, may be used in the different vessels, needn’t add any parts.
Thick Liquid Filler Machine Features:
- Suitable material: Oil, jams, daily chemicals, and something that very viscous.
PLC control :This thick liquid filler machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action. - Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
- Anti drop function :When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
- Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Thick Liquid Filler Equipment Main Components:
| Descriptions | Brand | Item | Remark |
| Servo motor | Panasonic | 1.5KW | Japan |
| Reducer | Fenghua | ATF1205-15 | Taiwan |
| Conveyor motor | ZhenYu | YZ2-8024 | China |
| Servo drivers | Panasonic | LXM23DU15M3X | Japan |
| PLC | Schneider | TM218DALCODR4PHN | France |
| Touch Screen | Schneider | HMZGXU3500 | France |
| Frequency Converter | Schneider | ATV12HO75M2 | France |
| Photo electricity of inspect bottle | OPTEX | BRF-N | Japan |
| Pneumatic Element | Airtac | Taiwan | |
| Rotary Valve | F07/F05 | No Need for Oil | |
| Pneumatic actuator | F07/F05 | No Need for Oil | |
| Low-Voltage Apparatus | Schneider | France | |
| Proximity switch | ROKO | SC1204-N | Taiwan |
| Bearing | China | ||
| Lead Screw | TBI | Taiwan | |
| Butterfly valve | CHZNA | China |
