Automatic 10 Heads Oil Filling Machine

Home » Products » Automatic 10 Heads Oil Filling Machine

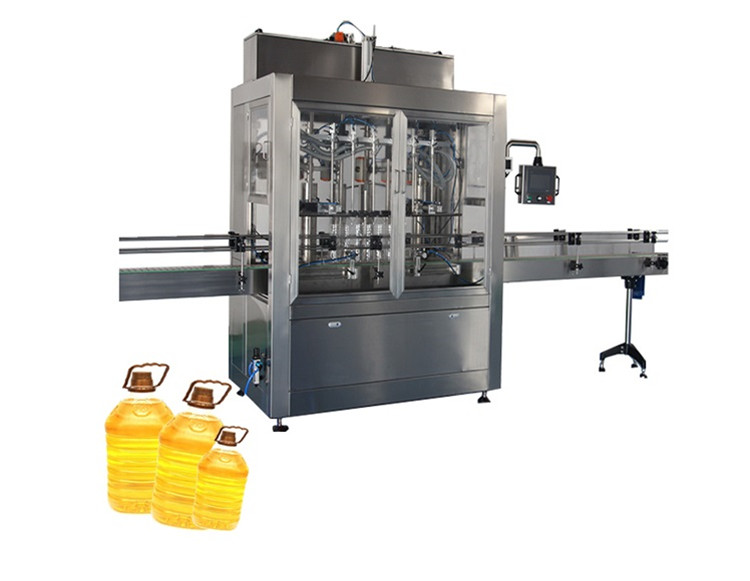

Automatic 10 Heads Oil Filling Machine

Automatic 10 Heads Oil Filling Machine Description:

The automatic 10 heads oil filling machine is a high-tech product designed and developed by our company.It suits for different viscosity of water agent, semi-fluid and paste, automatic 10 heads oil filling machine is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry. Using the straight filling way, may be used in the different vessels, needn’t add any parts.

Automatic 10 Heads Oil Filling Machine

Automatic 10 Heads Oil Filling Machine Features:

  • 1. Suitable material:Oil, jams, daily chemicals, and something that very viscous.
  • 2. Automatic 10 Heads Oil Filling Machine with PLC control:This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
  • 3. Accuate measurement:adopt servo control system, ensure the piston can always reaches constant position.
  • 4. Anti drop function:When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
  • 5. Convenient adjustment:replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.

Technological Parameters:

1

Model

VF-10

2

Speed

2000-2300bottles/hour

3

Filling range

1000ml~3000ml

4

Measurement precision

±0.5%

5

Working power

220VAC

6

Air pressure

6~7 ㎏/㎝?

7

Air consumpation

1m³/min

8

Power rate

8kw

9

Net weight

2250Kg

10

Counter size

3600mm×1200mm×2200mm
