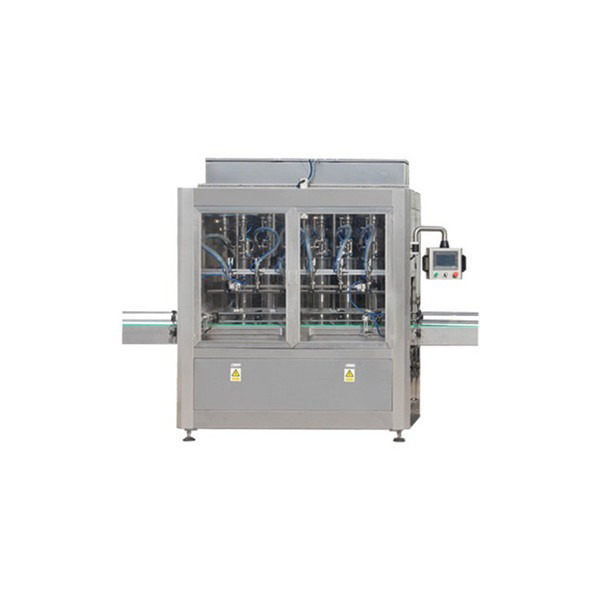

Full-Automatic Antiseptic Filling Machine which is made by VKPAK Machine has a reliable quality.VKPAK Machine is a beverage machine supplier from China.
Brief Introduction of Full-Automatic Antiseptic Filling Machine:
- Suitable material: Bleach, acid liquid, 84 disinfectant, gel water, toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.
- Contact liquid parts are use anticorrosive non-metallic material and with diving function.
- This Vertical filler is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action.
- The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes. Short filling circle, high production capacity.
- User may choose the filling volume and decide the filling heads per own production capacity.
- The precision time of the pneumatic valve filling may set to 0.01second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
- Each filling-head’s measurement may be individually adjusted torealize the same filling measurement.
- The machine set such function: having counting program ofbottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
- More or less of the filling volume, may initially adjust to the neededfilling volume, then micro adjust, can get the ideal filling measurement precision.
Technical Parameter:
| No. | Full-Automatic Antiseptic Filling Machine | Technical Data |
| 1 | Capacity | 1000BPH for 350ml bottles |
| 2 | Filling Range | 50ml-500ml |
| 3 | Accuracy | ±1% |
| 4 | Power | 1.1KW |
| 5 | Voltage | 220V 50HZ |
| 6 | Weight | 850KG |
| 7 | Dimension | 2000*1300*2300MM |
Main Configuration to Full-Automatic Antiseptic Filling Machine:
| Descriptions | Brand | Item | Remark |
| Servo motor | Panasonic | 1.5KW | Japan |
| Reducer | Fenghua | ATF1205-15 | Taiwan |
| Conveyor motor | ZhenYu | YZ2-8024 | China |
| Servo drivers | Panasonic | LXM23DU15M3X | Japan |
| PLC | Schneider | TM218DALCODR4PHN | France |
| Touch Screen | Schneider | HMZGXU3500 | France |
| Frequency Converter | Schneider | ATV12HO75M2 | France |
| Photo electricity of inspect bottle | OPTEX | BRF-N | Japan |
| Pneumatic Element | Airtac | Taiwan | |
| Rotary Valve | F07/F05 | No Need for Oil | |
| Pneumatic actuator | F07/F05 | No Need for Oil | |
| Low-Voltage Apparatus | Schneider | France | |
| Proximity switch | ROKO | SC1204-N | Taiwan |
| Bearing | China | ||
| Lead Screw | TBI | Taiwan | |
| Butterfly valve | CHZNA | China |
