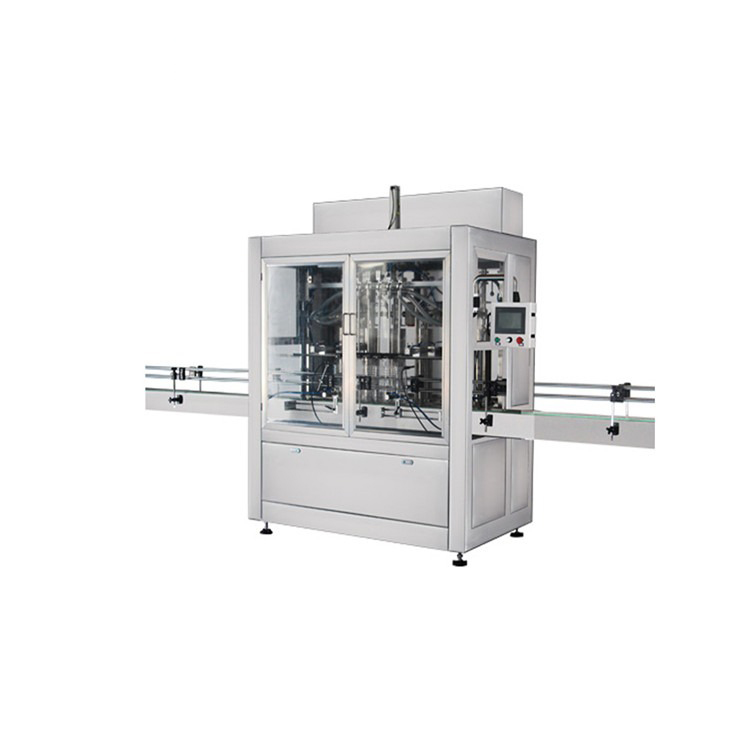

Wholesale automatic fruit jam Filling machine

The machine was design and manufactured by Shanghai Npack Automation equipment co.,ltd, especial for liquid from thin viscous to high density liquid, such as water, oil, lotion, cream, Jam, sauce, honey, ketchup and so on. It is mostly used in the industry of chemicals, foodstuff and pharmaceuticals.

Advantages:

1. filling nozzles from 2 -16 nozzles for option
2. anti- drops, equipped with shut off filling nozzles
3. when filling, the filling nozzles will insert into the bottom of the bottles
4. Filling volume can be automatically adjusting by touch screen , meanwhile customer also can choose adjust by rotary handle for economy investment.
5. Frequency speed control, and no bottle no filling
6. Top liquid hopper application, and automatically warning on lack of liquid

Technical parameters:

Model:NP-V F
Filling Nozzles:2-12 nozzles, or customized
Applied bottle range:30-100ml, 100-1000ml, 900ml-5000ml
Material density:0.6-1.5
Tolerance of filling quantity (accuracy):±£1%
Filling speed:800-4200 bottles/hour , 30b/min per 4 filling nozzles 1L
Power:2KW
Voltage:220V,380V ,50HZ /60HZ
Air Pressure:0.6Map
Air Consumption:1.2-1.4m³/min
Weight:500KG
Dimension:2300*1200*1760MM
Control:touch screen, PLC control

Company introduction

NPACK with more than 10 years experiences in this industry and large technical in our factory.There are 12 senior engineers.And,we have export our machine to more than 60 countries,such as Vietnam,Thailand, Malaysia, American,Indonesia, Nigeria,Egypt,and so on. There are more than 1,000 foreign customers.

Our advantages

1. more than 10 years experiences in this industry and large technical in our factory.

2. have export our machine to more than 60 countries.

3. There are more than 1,000 foreign customers.

4. There are 12 senior engineers in our factory.

5. The material of our machine is 100% 314/316 stainless steel.
