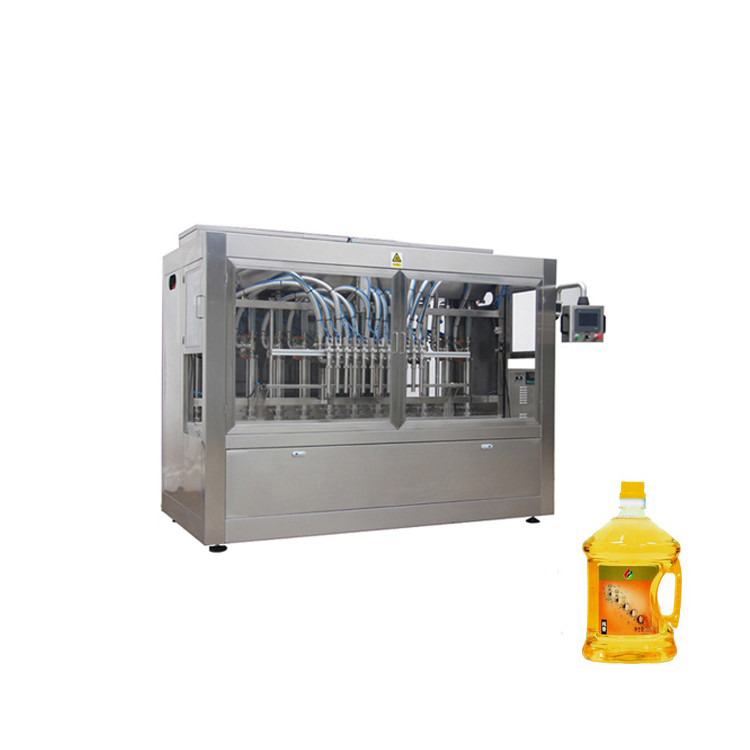

Automatic Linear Type Vegetable Oil Bottling Equipment Description:
Automatic linear type vegetable oil bottling equipment has two different kinds for choice,rotating and linear. Filling volume is between 250ml and 2000ml. Intelligent control with LCD make the filling accurate and no leaking. A overload protection is designed at the star-wheel, where the bottles are in and out. When something wrong, the protection device will alarm and stop the process.
The automatic vegetable vegetable oil filling line consists of automatic linear type vegetable oil bottling equipment, washing machine,tunnel sterilizing,labeling machine and packing machine.
Automatic linear type vegetable oil bottling machines are suitable for filling viscous, inviscid and corrosive liquid. This oil filling machine widely applied in plant oil,chemical liquid, and daily chemical industry. Automatic linear type vegetable oil bottling machine adopts linear type filling, electromechanical & instrucmental intergration controlling. This vegetable oil filling equipment’s simple and rapid for changing the varieties with unique design and superior capability. Vegetable cooking oil filling line appearance accords with the international machinery concept.
Automatic Linear Type Vegetable Oil Bottling Machine Feature:
- 1.Germay SIEMENS PLC and touch screen control make it intelligentize protection function.
- 2.Vacuum anti-dropping device ensures no leaking situation in production.
- 3.Electrinic ajusting for volume system,frequency control and photoelectric detecting system are app lied in vegetable oil bottling Machine.
- 4.Each filling head has the weigh and feedback system. Each filling head can be regulated.
Automatic Linear Type Vegetable Oil Bottling Equipment Technological Parameters:
| 1 | Model | NP-VF |
| 2 | Speed | 2500-3000bottles/hour based on 1L |
| 3 | Filling range | 1000ml~5000ml |
| 4 | Measurement precision | ±0.2% |
| 5 | Working power | 220VAC |
| 6 | Air pressure | 6～7㎏/㎝² |
| 7 | Air consumpation | 1m³/min |
| 8 | Power rate | 0.8kw |
| 9 | Other devices power rate | 7.5kw（air compressor） |
| 10 | Net weight | 1850Kg |
| Counter size | 3200mm×1200mm×2200mm |
Automatic Linear Type Vegetable Oil Bottling Equipment Video:
